M83513/04-G11N by itt cannon

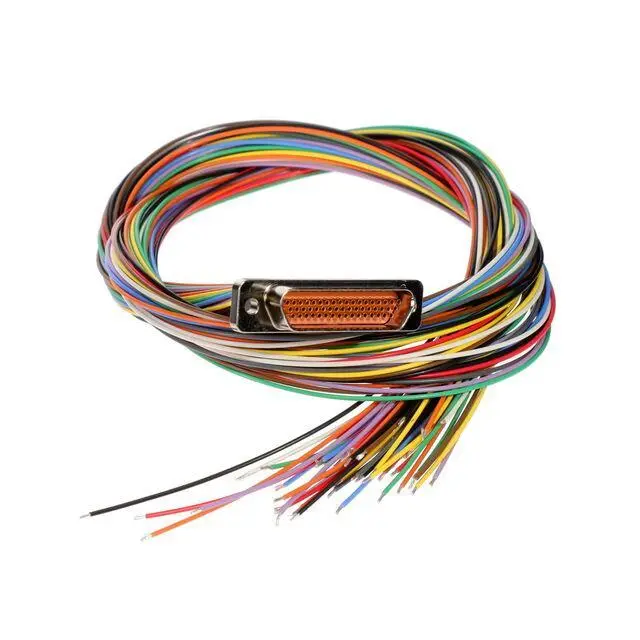

Image is representational - see mfr. specs

M83513/04-G11N

ITT CANNON

A MIL-C-83513 qualified 51-contact microminiature crimp-type receptacle connector with a metal shell and pre-wired 18-inch #26 ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
A MIL-C-83513 qualified 51-contact microminiature crimp-type receptacle connector with a metal shell and pre-wired 18-inch #26 AWG leads.
Search Keywords: M8351304G11N
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    M83513/04-G11N
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8544429090
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Hardware:
    No Hardware
  • Contact Resistance:
    8 milliohms max.
  • Durability Rating:
    500 cycles of mating and unmating, 500 CPH max.
  • Insulator Resistance:
    5000 megohms min.
  • Shell Material:
    Aluminum
  • Contact Type:
    Crimp
  • Disclaimer:
    Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.
  • Termination Type:
    72" Min, M22759/33 #26AWG, White
  • Thermal Shock:
    -55°/+125 °
  • Dielectric Withstanding Voltage:
    600 VAC at sea level 150 VAC at 70,00 altitude
  • Insulator Material:
    contact size 9 to100 = liquid crystalline polymer, contact arrangements 7C2 or 24C4 = Diallyl phthalate
  • Arrangement:
    51 Contact
  • Saltspray:
    48 hours
  • Physical Shock:
    50 Gs, 3 axes, 6 milisecond duration sawtooth pulse
  • Current Rating:
    3 A max.
  • Coupling:
    Friction Coupling
  • Vibration:
    20Gs, 10-2000 Hz. 12 hours
  • Moisture Resistance:
    Insulator resistance > 100 megohms
  • Gender:
    Socket
  • Contact Material:
    gold plated copper alloy
  • Series:
    Micro "D" Metal Shell
  • Shell Finish:
    Electroless Nickel
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 25
Ships today, if you order in
MOQ for out of Stock Qty:
3
20 Weeks can ship 9/17/26
ADD TO CART
Price (USD)
Qty
Unit Price
1
$243.37
3
$238.62
5
$237.43
8
$236.24
10 +
$208.71
