M83513/04-F03C by itt cannon

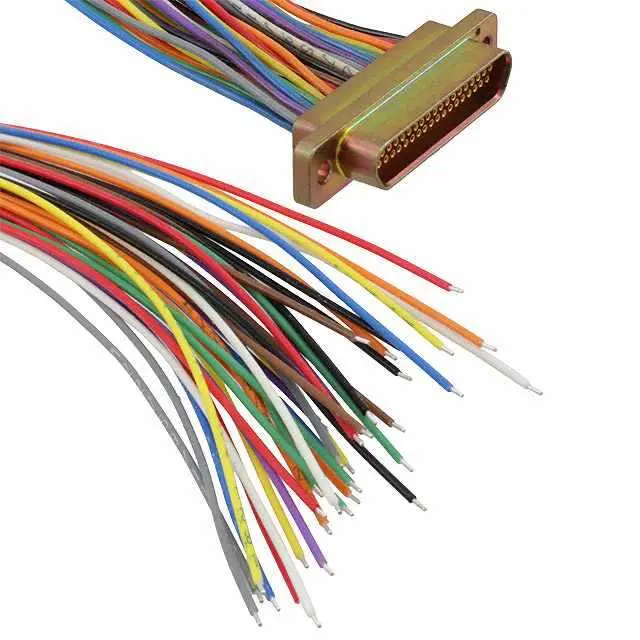

Image is representational - see mfr. specs

M83513/04-F03C

ITT CANNON

Receptacle 37POS

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
Receptacle 37POS
Search Keywords: M8351304F03C
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    M83513/04-F03C
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8544429090
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Physical Shock:
    50 Gs, 3 axes, 6 milisecond duration sawtooth pulse
  • Contact Material:
    gold plated copper alloy
  • Current Rating:
    3 A max.
  • Coupling:
    Friction Coupling
  • Contact Type:
    Crimp
  • Termination Type:
    72" Min, M22759/11 #26AWG, White
  • Gender:
    Socket
  • Durability Rating:
    500 cycles of mating and unmating, 500 CPH max.
  • Saltspray:
    48 hours
  • Insulator Material:
    contact size 9 to100 = liquid crystalline polymer, contact arrangements 7C2 or 24C4 = Diallyl phthalate
  • Moisture Resistance:
    Insulator resistance > 100 megohms
  • Vibration:
    20Gs, 10-2000 Hz. 12 hours
  • Hardware:
    No Hardware
  • Thermal Shock:
    -55°/+125 °
  • Shell Material:
    Aluminum
  • Contact Resistance:
    8 milliohms max.
  • Dielectric Withstanding Voltage:
    600 VAC at sea level 150 VAC at 70,00 altitude
  • Series:
    Micro "D" Metal Shell
  • Insulator Resistance:
    5000 megohms min.
  • Disclaimer:
    Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.
  • Shell Finish:
    Yellow Chromate/Cadmium over Nickel
  • Arrangement:
    37 Contact
Tools/3D Models +
Product Guides +

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 3
Can Ship immediately
20 Weeks can ship 9/15/26
ADD TO CART
Price (USD)
Qty
Unit Price
1
$223.14
5
$215.01
10
$211.52
20
$207.54
50
$99.62
100 +
$89.99
Click for Quote
Log in to unlock special pricing
Non-RoHS Equivalent
alternative Part Image
In Stock:
3
Minimum Order:
1
