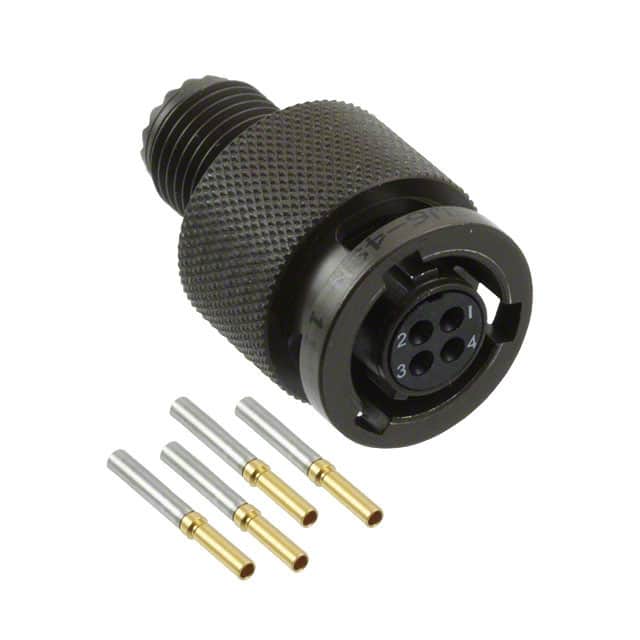

155331-1000 by itt cannon
Image is representational - see manufacturer specifications

ITT CANNON Authorized Distributor

155331-1000

Connector Bayonet Coupling Socket 4 Position Crimp Straight Cable Mount 4 Terminal 1 Port

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Non-Compliant
Packaging
Certificate of Compliance
Description +
Connector Bayonet Coupling Socket 4 Position Crimp Straight Cable Mount 4 Terminal 1 Port
Search Keywords: 1553311000
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    155331-1000
  • Alias/AKA:
    MKJ3B6W6-4SN
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Emi Shielding Effectiveness:
    40dB Attenuation, 100 MHz to 1000 MHz
  • Contact Size / Spacing:
    #23 / 0.076 inches (1.9 mm)
  • Class:
    Environmental Plug and ReceptacleThreaded Accessory Attachment
  • Shock:
    300 g′ (MKJ1) 50 g′ (MKJ0 and MKJ4) in Accordance with MIL-STD-1344 Method 2004, Condition E
  • Voltage Rating:
    500 VAC RMS Sea Level
  • Insulator Resistance:
    5000 Megaohms Minim um
  • Wire Acomodiation:
    #22 - #28 AWG
  • Vibration:
    20 g′ in Accordance with MIL-STD-1344 Method 2005, Condition IV
  • Polarization:
    Normal (150° 210°)
  • Contact Resistance:
    8 Milliohms Maxim um
  • Shell Size:
    6
  • Plating:
    Aluminum/OD Cad
  • Series:
    Bayonet Coupling
  • Current Rating:
    5 Amps Maxim um
  • Shell Style:
    Straight Plug
  • Operating Temperature:
    -55°/+150 °
  • Contact Arrangement:
    23 Contacts Size 4
  • Gender:
    Socket, Crimp, Removable
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 155331-1000 RoHS compliant?
No, 155331-1000 is not RoHS compliant.
What is the lead time for 155331-1000?
The standard lead time for 155331-1000 is approximately 24 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
7
24 Weeks can ship 4/1/27
Backorder
Request Quote
Price (USD)
Qty
Unit Price
7
$214.64
13
$142.25
19
$115.58
25 +
$113.26
Click for Quote
