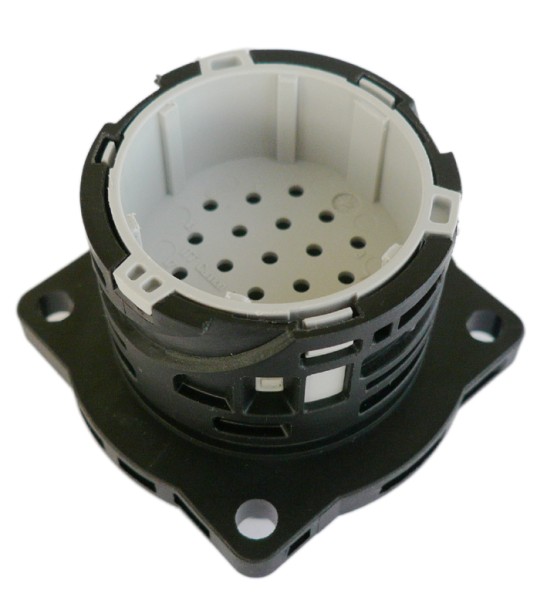

Image is representational - see mfr. specs

itt cannon
Authorized Distributor

121583-0129

ITT CANNON

grey (RAL 7036) Flange Receptacle 19-way with o-ring for rear panel mounting

+ see all

Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance Guarantee

Description +

grey (RAL 7036) Flange Receptacle 19-way with o-ring for rear panel mounting

Product Highlights:

Potential Applications:

Search Keywords: 1215830129

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

ITT CANNON
Part No:

121583-0129
Alias/AKA:

APD-2AP19S-R
Unit of Measure:

Per Each
RoHS:

Yes
Supplier Standard Pack:

40
Sealing Material:

FKM
Gender:

Pin
Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Sealing:

IP 67 (DIN EN 60529)
Dynamic Impact:

Free fall with cable (EN 61984 Sec. A9, height 1m)
Coupling Nut Material:

PA 46 GF
Series:

APD 19-way
Durability Rating:

50 Mating Cycles
Industrial Climate:

SO2, 0,67 %
Voltage Proof:

1000 VAC, 60 seconds
Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Contact Resistance:

5 mΩ max
Insulator Resistance:

10 MΩ min.
Operating Current:

see derating curve (catalog)
Connector Type:

Flange Receptacle
Temperature Range:

-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Humidity Range:

up to 95 %
Operating Voltage:

48 VDC
Coupling Torque:

3.5 Nm max
Static Load:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Mounting Method:

Rear Mount
Coding (Mechanical Keying And Visual Color Coding):

Code 2 - grey (RAL 7036)
Housing Material:

PBT GF
