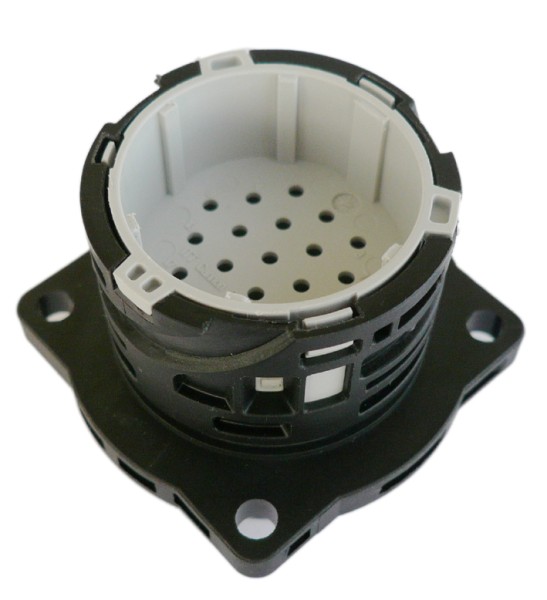

Image is representational - see mfr. specs

itt cannon
Authorized Distributor

121583-0126

ITT CANNON

blue (RAL 5012) Flange Receptacle 19-way

+ see all

Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance Guarantee

Description +

blue (RAL 5012) Flange Receptacle 19-way

Product Highlights:

Potential Applications:

Search Keywords: 1215830126

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

ITT CANNON
Part No:

121583-0126
Alias/AKA:

APD-4AP19S
Unit of Measure:

Per Each
RoHS:

Yes
Supplier Standard Pack:

40
Sealing:

IP 67 (DIN EN 60529)
Operating Voltage:

48 VDC
Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Operating Current:

see derating curve (catalog)
Dynamic Impact:

Free fall with cable (EN 61984 Sec. A9, height 1m)
Humidity Range:

up to 95 %
Static Load:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Coupling Torque:

3.5 Nm max
Coding (Mechanical Keying And Visual Color Coding):

Code 4 - blue (RAL 5012)
Industrial Climate:

SO2, 0,67 %
Voltage Proof:

1000 VAC, 60 seconds
Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Contact Resistance:

5 mΩ max
Coupling Nut Material:

PA 46 GF
Series:

APD 19-way
Insulator Resistance:

10 MΩ min.
Sealing Material:

FKM
Gender:

Pin
Housing Material:

PBT GF
Durability Rating:

50 Mating Cycles
Connector Type:

Flange Receptacle
Temperature Range:

-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)

Tools/3D Models +

EE ToolBox

Product Guides +

Component Moment: ITT APD series

Price Match Guarantee - we'll meet or beat any authorized Competitor's published price.

Price Match

This product is discontinued, but still in stock.
This product is NOT RoHS Compliant. See alternative
Different product options available. See alternative
Different packaging options available. See alternative
Possible Replacement options available. See alternative
Item discontinued
End of Life: Final orders must be placed by
Item discontinued

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price Match Guarantee

We’ll meet or beat any authorized competitor’s published price for this part.

In Stock: 0

On Order:

Manufacturer Stock:

0 can ship

Stock lot only:

MOQ for out of Stock Qty:

Order Increment:

Factory Lead-Time:

12 Weeks can ship 8/13/26

Backorder

Your order may include a combination of full reels and cut tape depending on available stock.

Need guaranteed full reels? Contact Sales

Price (USD)

A tariff of {0} may be applied if shipping to the United States.

Qty

Unit Price

$41.24

$25.38

$20.09

80 +

$19.69

Suppliers Standard Package
