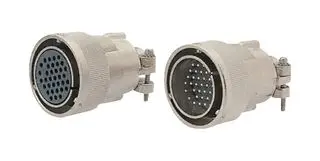

Image is representational - see manufacturer specifications

ITT CANNON Authorized Distributor

121532-0039

Circular Connector Plug - Female Sockets - 3 Position - 22-2 Shell Size - 74A - N (Normal) Orientation - Reverse Bayonet Lock ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Circular Connector Plug - Female Sockets - 3 Position - 22-2 Shell Size - 74A - N (Normal) Orientation - Reverse Bayonet Lock - Solder Cup.
Search Keywords: 1215320039
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    121532-0039
  • Alias/AKA:
    CA06COM-E22-2S-B
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    PL
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Sep# Force Per Contact (Size 60/100/8):
    3,0 N
  • Harnessing Info: Contact Cross-Section:
    See assembly instruction
  • Ambient Temperature:
    Standard insulator material -55°/+125°C (-67/257°F)
  • Operating Voltage:
    In case of voltages greater than 50V the connector must be used in accordance with DIN VDE part 410, IEC 60364-4-41.
  • Air And Creepage Paths (Min):
    2,8 mm
  • Contact Resistance (Size 60/100/8):
    1 mΩ
  • Shell Material:
    Aluminium alloy
  • Gauge:
    For infos on Gauge please see catalog VG95234, part 1
  • Number of Contacts:
    3 contacts size 8
  • Wire Stripping (Size 60/100/8):
    11,8 mm
  • General Info:
    All tests in accordance with VG95319 and/or if applicable with VG95210 except salt spray resistance and heat and humidity endurance test
  • Contact Plating:
    Hard silver
  • Contact Type:
    Solder Cup
  • Bayonet:
    Connector with bayonet coupling
  • Coupling Torque:
    Closing: 5 Nm max / Opening: 0,8 Nm min
  • Endbell Style:
    Endbell with clamp and bushing (w/o grommet and ferrule)
  • Mating Cycles:
    500 min
  • Contact Material:
    Copper Alloy
  • Shell Style:
    Plug, straight
  • Shell Size:
    22
  • Contact Arrangement:
    22-2
  • Contact Retention (Size 60/100/8):
    80 N
  • Contacts Installed:
    Yes
  • Test Voltage:
    2500 Vrms
  • Shell Plating:
    Nickel plated
  • Contact Rating At +20 °c (68 °f) (Size 60/100/8):
    74 A
  • Harnessing Info: Insulator Diameter:
    See assembly instruction
  • Insulator Resistance:
    ≥1000 MΩ
  • Insulator And Grommet Material:
    CR-Elastomere
  • Gender:
    Socket
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 121532-0039 RoHS compliant?
Yes, 121532-0039 is RoHS compliant.
What is the lead time for 121532-0039?
The standard lead time for 121532-0039 is approximately 15 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 32
Can Ship immediately
On Order:
125   can ship 11/30/26
MOQ for out of Stock Qty:
25
15 Weeks can ship 2/3/27
ADD TO CART
