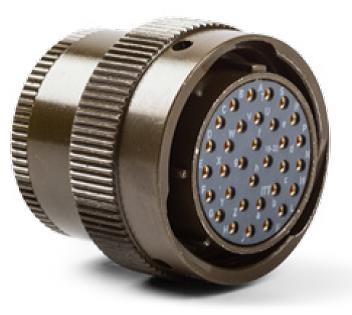

065033-0072 by itt cannon
Image is representational - see mfr. specs

065033-0072

ITT CANNON

KPSE06E2016SF0; MIL-DTL 26482 Series I & Mil Batte

+ see all

Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
KPSE06E2016SF0; MIL-DTL 26482 Series I & Mil Batte
Search Keywords: 0650330072
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    ITT CANNON
  • Part No:
    065033-0072
  • Alias/AKA:
    KPSE06E20-16S-F0
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8538908180
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Contacts:
    16 contacts size 16
  • Insulator And Grommet Material:
    Polychloroprene
  • Endbell Style:
    Grommet seal
  • Shell Material:
    Aluminium alloy
  • Shell Plating:
    Olive drab chromate over cadmium plating
  • Shell Size:
    20
  • Contact Arrangement:
    20-16
  • Contacts Installed:
    no, delivery without contacts
  • Contact Type:
    Crimp Contacts
  • Contact Rating Awg16:
    13,0 A
  • Water Tightness:
    Acc. To VG95319 Part 2, Test No. 5.9.2
  • Gender:
    Socket
  • General Info:
    All tests in accordance with VG95319 and/or if applicable with VG95210
  • Safety Provisions:
    IP67 acc. to DIN 40 050 (0,2 bar pressure over 48 hrs)
  • Disclaimer:
    Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.
  • Harnessing Info: Contact Cross-Section:
    See assembly instruction
  • Contact Plating:
    Size 12 & 16: gold plated Size 20: Contact body: tin / Contact area: gold plated
  • Shell Style:
    Straight Plug
  • Harnessing Info: Insulator Diameter:
    See assembly instruction
  • Operating Voltage:
    In case of voltages greater than 50V the connector must be used in accordance with DIN VDE part 410, IEC 60364-4-41.
  • Vibration:
    200 m/s² at 10 to 2000 Hz
  • Operating Temperature:
    -55°/+125°C (-67/257°F)
  • Mating Cycles:
    500 min
  • Test Voltage:
    2300 Vrms
  • Insulator Resistance:
    ≈5000 MOhm
  • Contact Material:
    Copper Alloy
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
17 Weeks can ship 9/14/26
Backorder
Price (USD)
Qty
Unit Price
13
$116.28
25
$74.42
38
$58.14
50 +
$56.97
