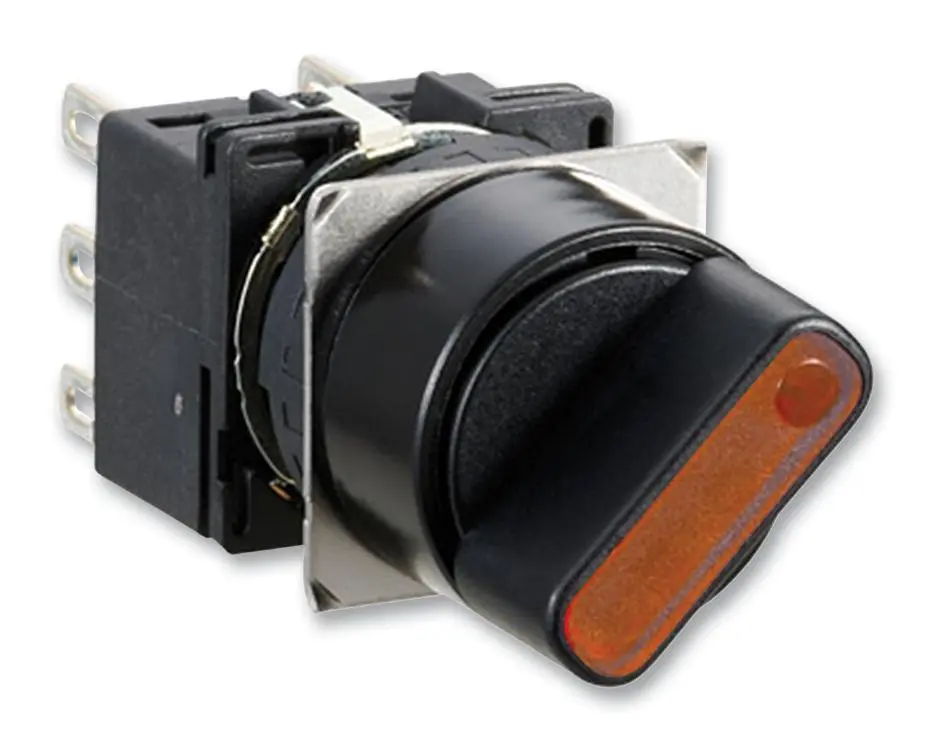

LB1F-2T63A by idec corporation
Image is representational - see manufacturer specifications

IDEC Corporation Authorized Distributor

LB1F-2T63A

Rotary Switch - 2 Position - 2 Pole - 5 A - 250 V - 90 ° Angle of Throw - Illuminated - Amber.

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Rotary Switch - 2 Position - 2 Pole - 5 A - 250 V - 90 ° Angle of Throw - Illuminated - Amber.
Search Keywords: LB1F2T63A
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    IDEC Corporation
  • Part No:
    LB1F-2T63A
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509065
  • COO:
    JP
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Type:
    2 Position13955
  • Pole Throw Configuration:
    DPDT13947
  • Actuator Style:
    Knob13922
  • Illumination Color:
    Amber13931
  • Illumination Type:
    LED13932
  • Typical Illumination Voltage:
    1213956VAC,1213956VDC
  • Maximum Current Rating:
    5@125VAC A
  • Terminal Type:
    Quick Connect/Solder13954
  • Angle of Throw:
    90 °
  • Number of Positions:
    213944
  • Switch Configuration:
    N.O./N.C.13952
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is LB1F-2T63A RoHS compliant?
Yes, LB1F-2T63A is RoHS compliant.
What is the lead time for LB1F-2T63A?
The standard lead time for LB1F-2T63A is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 15
Can Ship immediately
9 Weeks can ship 12/28/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1
$70.57
5
$48.31
10
$41.98
25
$39.61
50
$37.04
100
$36.67
250 +
$36.58
