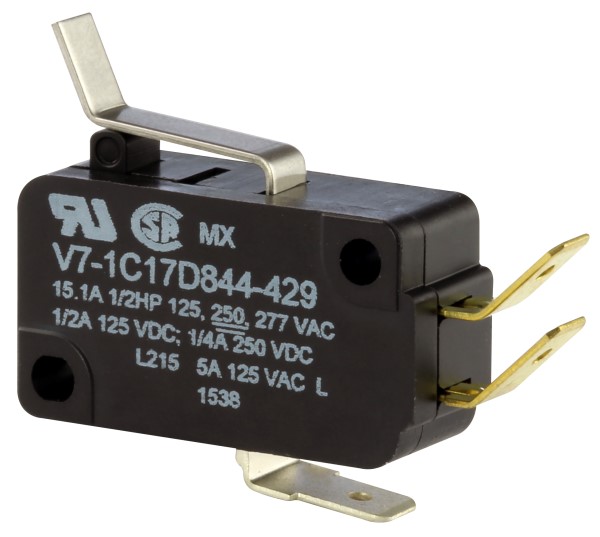

V7-1C17D844-429 by honeywell
Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

V7-1C17D844-429

MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw (SPDT), 15 A 125, 250, or 277 Vac, 25 mm [0.983 in ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Tray Packaging
Certificate of Compliance
Description +
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw (SPDT), 15 A 125, 250, or 277 Vac, 25 mm [0.983 in] Curved Tip Lever Actuator, 130 g [4.6 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 4,75 mm x 0,51 mm [0.187 in x 0.02 in] Quick Connect Termination with Normally Open and Normally Closed Terminal Blades Formed Up 45°, UL, CSA
Product Highlights:
  • UL/CSA and ENEC approvals
  • Designed for 100K operations at a full load or 10M for mechanical life
  • Best suited for higher cost-of-failure applications
  • World-wide package size acceptance
  • Current rating ranges from 0.1 A to 25 A
Search Keywords: V71C17D844429
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Honeywell
Part No: V7-1C17D844-429
Unit of Measure: Per Each
RoHS: Yes
HTS: 85365080
COO: MX
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 1
Mounting: Through Hole
Pole Throw Configuration: SPDT
Switch Configuration: N.O./N.C.
Actuator Material/Style: Steel/Lever
Contact Rating @ Voltage: 372.85 A
Maximum Movement Differential: 0.43 mm
Operating Force: 1.27 N
Termination Style: Quick Connect
Dimension: 36.75 x 10.16 x 30.61 mm
Body Orientation: Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is V7-1C17D844-429 discontinued?
Yes, V7-1C17D844-429 from Honeywell is discontinued (end-of-life January 2017). OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is V7-1C17D844-429 RoHS compliant?
Yes, V7-1C17D844-429 is RoHS compliant.
What is the lead time for V7-1C17D844-429?
The standard lead time for V7-1C17D844-429 is approximately 10 weeks. In-stock quantities ship from OnlineComponents.com.
