Honeywell
SS566AT

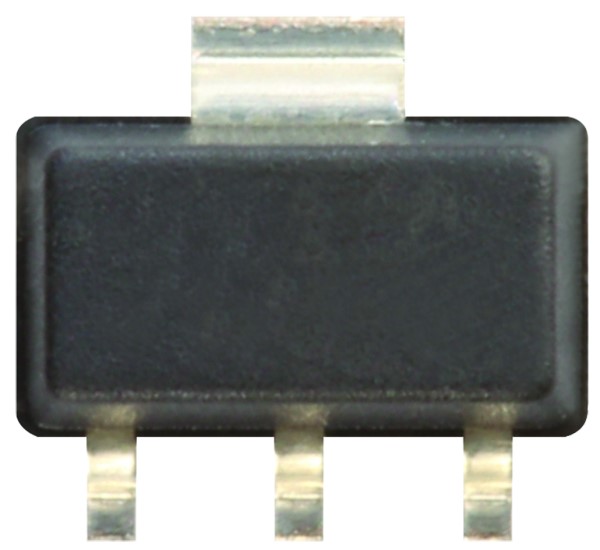

Honeywell Hall-effect Digital Position Sensor ICs: SS500 Series, Latching Hall-effect sensor IC, Medium sensitivity, SOT-89B s ...
View Datasheet Accessories Notify Me
- Quad Hall design virtually eliminates mechanical stress effects
- Temperature compensated magnetics
- Super high sensitivity available
- Symmetry of operate/release points about zero gauss (bipolar/latching)
- Low current consumption
- High output current capability
| Product Attribute | Attribute Value Select Attribute |
|---|---|
| Supplier: | Honeywell |
| Part No: | SS566AT |
| Unit of Measure: | Per Each |
| RoHS: | Yes |
| HTS: | 8542390060 |
| COO: | CN |
| ECCN: | EAR99 |
Reel Pack:
|
1000 |
| Magnetic Type: | Bipolar Latch |
| Maximum Output Current: | 20 mA |
| Mounting: | PCB Surface Mount |
| Minimum Magnetic Sensor Release Point: | -180 Gs |
| Maximum Magnetic Sensor Operating Point: | 180 Gs |
| Output Type: | Sink |
| Output Driver: | NPN |
| Product Type: | Digital |
| Dimension: | 4.4 x 2.4 x 1.4 mm |
| Typical Operating Supply Voltage: | 3.8 to 30 V |
| Termination Type: | Gull Wing |
| Operating Temperature: | -40 to 150 °C |
-
