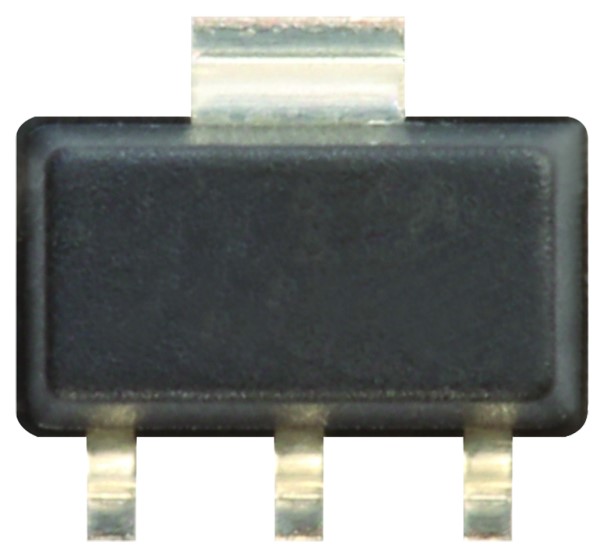

SS513AT by honeywell
Image is representational - see mfr. specs

SS513AT

Honeywell

Honeywell Hall-effect Digital Position Sensor ICs: SS500 Series, Bipolar Hall-effect Sensor IC, Medium sensitivity, SOT-89B su ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Reel Packaging
Certificate of Compliance Guarantee
Description +
Honeywell Hall-effect Digital Position Sensor ICs: SS500 Series, Bipolar Hall-effect Sensor IC, Medium sensitivity, SOT-89B surface mount package, Available in 1000 units per tape and reel
Product Highlights:
  • Quad Hall design virtually eliminates mechanical stress effects
  • Temperature compensated magnetics
  • Super high sensitivity available
  • Symmetry of operate/release points about zero gauss (bipolar/latching)
  • Low current consumption
  • High output current capability
Search Keywords: SS513AT
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Honeywell
  • Part No:
    SS513AT
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    85437000
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1000
  • Magnetic Type:
    Bipolar
  • Maximum Output Current:
    20 mA
  • Mounting:
    PCB Surface Mount
  • Minimum Magnetic Sensor Release Point:
    -140 Gs
  • Maximum Magnetic Sensor Operating Point:
    140 Gs
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital
  • Dimension:
    4.4 x 2.4 x 1.4 mm
  • Typical Operating Supply Voltage:
    3.8 to 30 V
  • Termination Type:
    Gull Wing
  • Operating Temperature:
    -40 to 150 °C
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 9,769
Can Ship immediately
MOQ for In Stock Qty:
30
MOQ for out of Stock Qty:
30
51 Weeks can ship 11/11/26
ADD TO CART
Price (USD)
Qty
Unit Price
30
$11.62
100
$11.44
250
$11.27
500
$5.97
750
$4.20
1,000 +
$4.11
Suppliers Standard Package
Click for Quote
Log in to unlock special pricing
