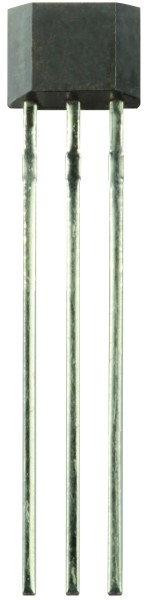

Image is representational - see mfr. specs

honeywell
Authorized Distributor

SS40A

Honeywell

Honeywell Hall-effect Digital Position Sensor ICs: SS40A series, Low-cost bipolar Hall-effect Sensor IC, Reverse polarity prot ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance Guarantee

Description +

Honeywell Hall-effect Digital Position Sensor ICs: SS40A series, Low-cost bipolar Hall-effect Sensor IC, Reverse polarity protection, Flat TO92 package with straight leads, Available in bulk packaging of 1000 per bag.

Product Highlights:

High speed Operates from 0 kHz to over 100 kHz
Broad temperature range of -40 °C to 125 °C [-40 °F to 257 °F]
Built-in reverse polarity protection
Bipolar magnetics for ring magnet applications
High output current capability (20 mA)
Miniature construction: 3.0 mm x 4.0 mm [0.12 in x 0.16 in] plastic package
Power consumption of only 5 mA max at 4.5 Vdc for energy efficiency
Digital current sinking output

Potential Applications:

Search Keywords: SS40A

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

Honeywell
Part No:

SS40A
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8542390060
COO:

CN
ECCN:

EAR99
Supplier Standard Pack:

1000
Magnetic Type:

Bipolar
Maximum Output Current:

20 mA
Mounting:

PCB Through Hole
Minimum Magnetic Sensor Release Point:

-110 Gs
Maximum Magnetic Sensor Operating Point:

110 Gs
Output Type:

Sink
Output Driver:

NPN
Product Type:

Digital
Dimension:

4.1 x 1.6 x 4.1 mm
Typical Operating Supply Voltage:

4.5 to 24 V
Termination Type:

PC Pins
Operating Temperature:

-40 to 125 °C
