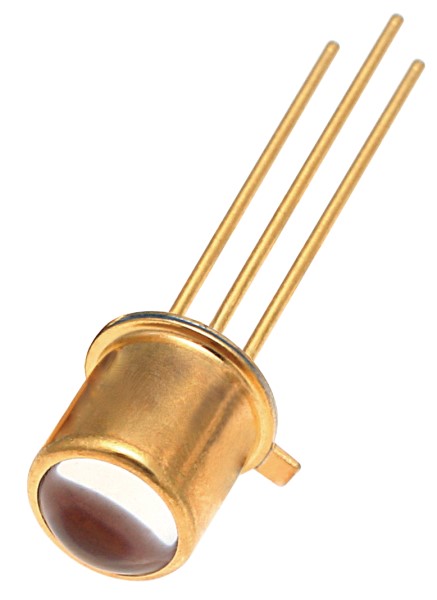

SD5630-001 by honeywell
Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

SD5630-001

Photodetector 0.1MHz Optoschmitt 3-Pin TO-46

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Discontinued
Packaging
Certificate of Compliance
Description +
Photodetector 0.1MHz Optoschmitt 3-Pin TO-46
Product Highlights:
  • TO-46 metal can package
  • 6 ° (nominal)acceptance angle
  • TTL/LSTTL/CMOS compatible
  • High noise immunity output
  • Buffer (SD5620) or inverting (SD5630) logic available
  • Two sensitivity ranges
  • Mechanically and spectrally matched to SE3450/5450, SE3455/5455 and SE3470/5470 infrared emitting diodes
Search Keywords: SD5630001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Honeywell
  • Part No:
    SD5630-001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542390001
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Dimension:
    6.27(Max) x 5.56(Max) mm
  • Family:
    SD5630
  • Fall Time:
    15 ns
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is SD5630-001 discontinued?
Yes, SD5630-001 from Honeywell is discontinued (end-of-life December 2012). OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is SD5630-001 RoHS compliant?
Yes, SD5630-001 is RoHS compliant.
What is the lead time for SD5630-001?
The standard lead time for SD5630-001 is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.

  • This product is discontinued, but still in stock.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 111
Can Ship immediately
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1
$0.500
50
$0.490
100
$0.480
250
$0.471
500
$0.461
1,000
$0.452
2,500 +
$0.443
