Available Replacements
SCC100ASMT by honeywell
Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

SCC100ASMT

Pressure Sensor 0psi to 100psi Absolute 8-Pin CSMD

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Discontinued & Replaced
Packaging
Certificate of Compliance
Description +
Pressure Sensor 0psi to 100psi Absolute 8-Pin CSMD
Product Highlights:
  • Low Cost
  • Small Size
  • Internal Temperature Compensation
  • Absolute or Gauge Pressures
  • High-Impedance Bridge
  • Low Power Consumption
Search Keywords: SCC100ASMT
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Honeywell
Part No: SCC100ASMT
Unit of Measure: Per Each
RoHS: Yes
HTS: 9026204000
COO: CN
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 1
Mounting: PCB Through Hole
Accuracy: ±0.5 %
Device Pressure Type: Absolute
Operating Pressure Range: 0 to 100 psi
Media: Air,Gas
Output Voltage: 85 to 225 mV
Response Time: 0.1 mS
Typical Operating Supply Voltage: 1.5 mA
Operating Temperature: -40 to 85 °C
Dimension: 7.6 x 7.6 x 8.7 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is SCC100ASMT discontinued?
Yes, SCC100ASMT from Honeywell is discontinued (end-of-life December 2018). OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
What replaces SCC100ASMT?

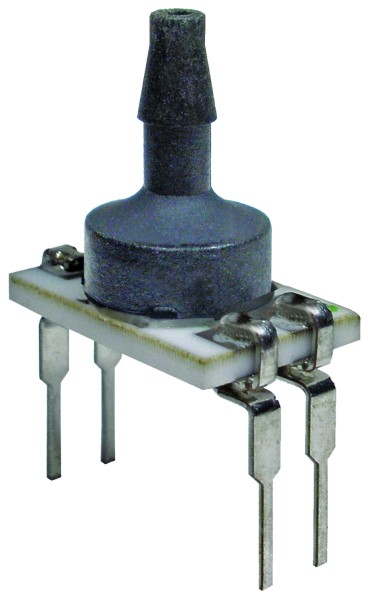

The recommended replacement for SCC100ASMT is NBPDANN100PAUNV from Honeywell, available from OnlineComponents.com.
Is SCC100ASMT RoHS compliant?
Yes, SCC100ASMT is RoHS compliant.
What is the lead time for SCC100ASMT?
The standard lead time for SCC100ASMT is approximately 8 weeks. In-stock quantities ship from OnlineComponents.com.
