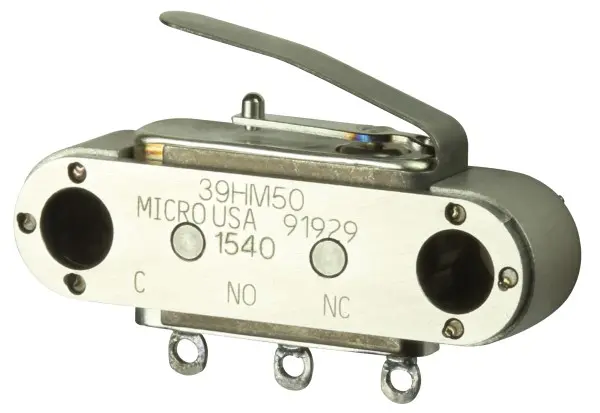

Image is representational - see manufacturer specifications
Honeywell
39HM50
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Value Add Assembly Series, Single Pole Double Throw (SPDT), 500 ...
View Datasheet Accessories Notify Me
RoHS Non-Compliant
Description
+
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Value Add Assembly Series, Single Pole Double Throw (SPDT), 500 mA at 28 Vdc, Gold-Plated Bifurcated Contacts, Stainless Steel Enclosure, Thru-Hole Solder Termination, Includes 119HM2 Basic with Auxiliary Leaf Spring Actuator, Mounting Bracket and Hardware Assembled, -165 °C to 260 °C [-85 °F to 500 °F] Continuous Temperature Range
Search Keywords: 39HM50
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Honeywell
-
Part No:39HM50
-
Unit of Measure:Per Each
-
RoHS:No
-
HTS:85365080
-
COO:US
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Mounting:Through Hole
-
Pole Throw Configuration:SPDT
-
Switch Configuration:N.O./N.C.
-
Actuator Material/Style:Lever
-
Contact Rating @ Voltage:0.5@28VDC A
-
Maximum Movement Differential:0.46 mm
-
Operating Force:2.5 N
-
Termination Style:Solder
-
Dimension:30.15 x 8.81 x 22.2 mm
-
Body Orientation:Straight
-
IP Rating:N/A
Tools/3D Models
+
-
EE ToolBox
Datasheet
Component Moment Extended Cut: Honeywell Hazard Switches
Frequently Asked Questions
Is 39HM50 RoHS compliant?
No, 39HM50 is not RoHS compliant.
What is the lead time for 39HM50?
The standard lead time for 39HM50 is approximately 73 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
3
Can Ship immediately
73 Weeks
can ship
2/14/28
Price (USD)
Qty
Unit Price
1
$4,004.95
3
$3,994.93
5
$2,448.51
8
$1,562.54
10 +
$1,531.29
