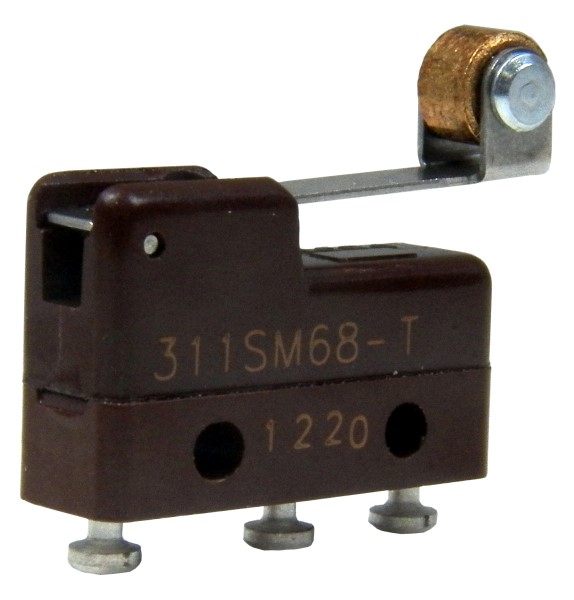

Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

311SM68-T

MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw (SPDT), 1 A 125 Vac, Gold-Plated Contacts, 0,39 ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw (SPDT), 1 A 125 Vac, Gold-Plated Contacts, 0,39 N [1.4 oz] Maximum Operating Force, 6,38 mm [0.25 in] Integral Roller Lever Actuator, Single Turret Solder Termination, 9,5 mm [0.38 in] Mounting Centers, UL, CE, CSA, ENEC
Product Highlights:
  • Long operating life
  • Elongated mounting hole for easier, more accurate mounting
  • Long mechanical life up to 10,000,000 cycles
  • Ampere rating: 1 A
  • Operating force of 0.39 N and operating temperature ranging between -54 to 85 °C
  • Gold Contacts
  • Choice of electrical termination (solder, quick connect, PCB)
  • Choice of actuation (plunger, as well as a variety of integral and auxiliary actuators)
Potential Applications:
  • Aerospace
  • Instrumentation
  • Appliances
  • Vending machines
  • Timing devices
  • Office equipment
  • Computer/business equipment
  • Test instruments
  • Medical/dental equipment
  • Communications equipment
  • HVAC equipment
  • Manually operated devices
  • Valves
Search Keywords: 311SM68T
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Honeywell
Part No: 311SM68-T
Unit of Measure: Per Each
RoHS: Yes
HTS: 8536509040
COO: MX
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 10
Mounting: Through Hole
Pole Throw Configuration: SPDT
Switch Configuration: N.O./N.C.
Actuator Material/Style: Roller Lever
Contact Rating @ Voltage: 1 A
Maximum Movement Differential: 0.48 mm
Operating Force: 0.39 N
Termination Style: Solder
Dimension: 23.45mm x 6.4mm x 16.9 mm
Body Orientation: Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 311SM68-T RoHS compliant?
Yes, 311SM68-T is RoHS compliant.
What is the lead time for 311SM68-T?
The standard lead time for 311SM68-T is approximately 45 weeks. In-stock quantities ship from OnlineComponents.com.
