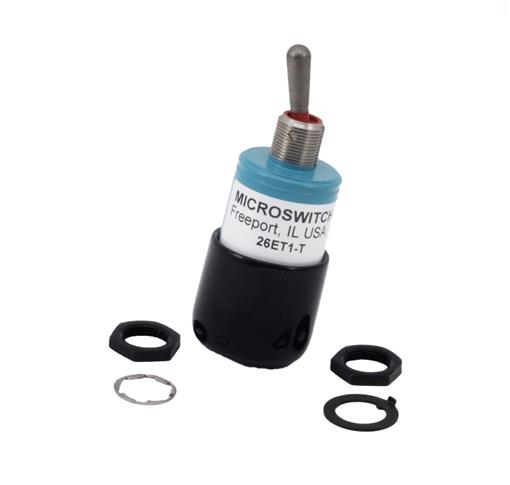

Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

26ET1-T

Name: 26ET1-T Honeywell Toggle Switches
Brand: Honeywell
SKU: 11917287
Availability: InStock

MICRO SWITCH™ Electro-Magnetic Held Toggle Switches: ET Series, Double Pole Double Throw (DPDT), 2 Position (Mom. On - On, Coi ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance

Description +

MICRO SWITCH™ Electro-Magnetic Held Toggle Switches: ET Series, Double Pole Double Throw (DPDT), 2 Position (Mom. On - On, Coil Energized: On - On), Solder Turret Terminals, Standard Lever

Product Highlights:

Environment-proof sealing
2 and 3 position magnetically maintained toggle action
Various lever styles available
Turret, leadwire, and screw terminals
Temperature range -85 F to +160 F (-65 C to + 71 C)

Potential Applications:

Industrial machinery and equipment
Military and commercial aviation
Construction equipment
Test instruments
Agricultural machinery
Process control
Medical instrumentation

Search Keywords: 26ET1T

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	Honeywell
Part No:	26ET1-T
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	85365080
COO:	US
ECCN:	EAR99
Supplier's Standard Package:	1
Pole Throw Configuration:	2P Special
Contact Rating @ Voltage:	4@28VDC A
Actuator Style:	Round Lever
Mounting:	Panel Mount with Threads
Thread Size:	15/32-32
Body Orientation:	Straight
Terminal Type:	Solder
Dimension:	25.4mm x 25.4mm x 76.96 mm
Operating Temperature:	-65 to 71 °C
