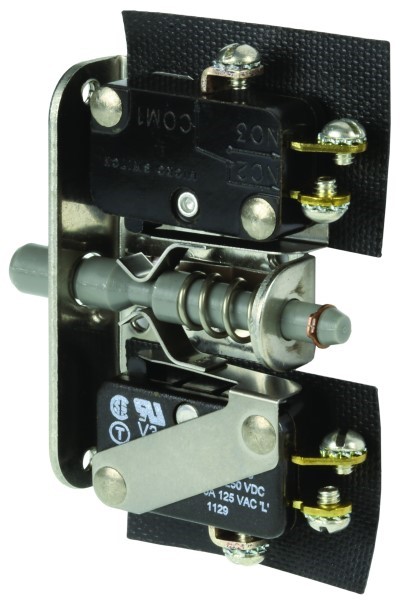

24AC1 by honeywell
Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

24AC1

MICRO SWITCH™ Door Switches: AC Series, (2) Single Pole Double Throw (SPDT), 15 A 125/250 Vac, 3 Position (Push-Momentary, Pul ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
MICRO SWITCH™ Door Switches: AC Series, (2) Single Pole Double Throw (SPDT), 15 A 125/250 Vac, 3 Position (Push-Momentary, Pull-Maintained), High Strength Thermoplastic Rod Actuator, Supplied with (2) V3 Basic Switches, Round Head Termination Screws with Lockwashers
Search Keywords: 24AC1
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Honeywell
  • Part No:
    24AC1
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    85365080
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Type:
    Door Interlock
  • Actuator Style:
    Rod
  • Pole Throw Configuration:
    DPDT
  • Maximum Current Rating:
    15@250VAC A
  • Terminal Type:
    Screw
  • Operating Temperature:
    -18 to 82 °C
  • IP Rating:
    N/A
  • Dimension:
    50.01 x 13.21 x 66.6 mm
  • Switch Configuration:
    N.O./N.C.
  • Body Orientation:
    Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 24AC1 RoHS compliant?
Yes, 24AC1 is RoHS compliant.
What is the lead time for 24AC1?
The standard lead time for 24AC1 is approximately 20 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 1
Can Ship immediately
MOQ for out of Stock Qty:
2
20 Weeks can ship 3/10/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1
$703.06
2
$701.30
3
$575.43
4
$512.49
5 +
$502.24
