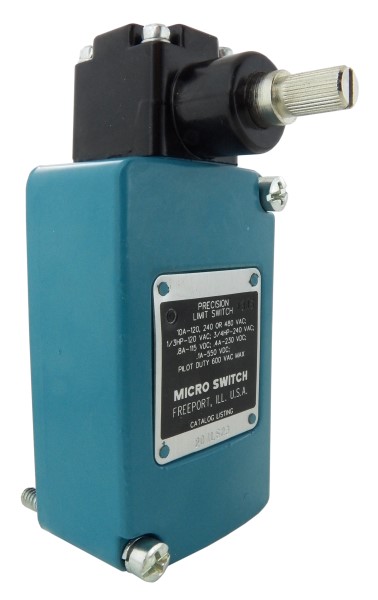

Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

201LS23

Name: 201LS23 Honeywell Limit Switches
Brand: Honeywell
SKU: 11915612
Availability: InStock

MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Aluminum Housing, Plug-in Body Style, Side Rotary, No Le ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance

Description +

MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Aluminum Housing, Plug-in Body Style, Side Rotary, No Lever, Low Operating Torque, 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, 10 A 120, 240, or 480 Vac, Plug-in, Less Base, Requires 18PA1 Terminal Block (0.5 in - 14 NPT) Ordered Separately, Operating Temperature: -29 °C to 71 °C [-20 °F to 160 °F], NEMA 1, 3, 4, 6 and 13

Product Highlights:

Mode of operation is field adjustable
NEMA 1, 3, 4, 6, and 13
Wide choice of heads and actuators
Variety of operating characteristics
Captive screws
UL and CSA approved parts available

Potential Applications:

Machine tools
Conveyors
Material handling
Metal fabrication equipment
Lift trucks

Search Keywords: 201LS23

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	Honeywell
Part No:	201LS23
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	85365080
COO:	MX
ECCN:	EAR99
Supplier's Standard Package:	10
Type:	Enclosed
Actuator Style:	Side Rotary
Pole Throw Configuration:	SPDT
Switch Configuration:	N.O./N.C.
Maximum Current Rating:	0.8@115VAC A
Terminal Type:	Conduit
NEMA Standard as Enclosure Rating:	1, 3, 4, 6, 13
Body Orientation:	Right Angle
