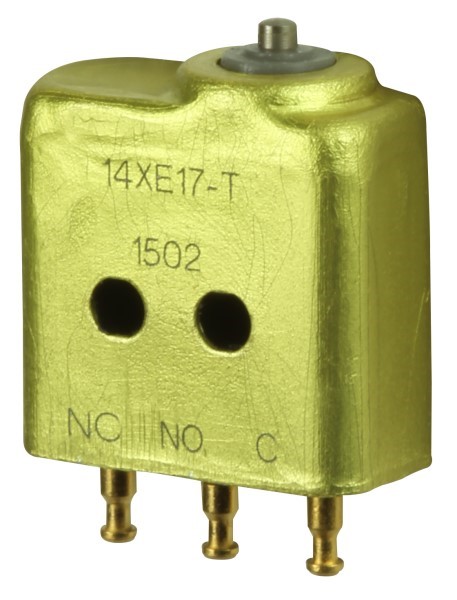

Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

14XE17-T

Name: 14XE17-T Honeywell Basic Snap Action Switches
Brand: Honeywell
SKU: 11913772
Availability: InStock

MICRO SWITCH™ Subminiature Environmentally Sealed Basic Switches: XE Series, Single Pole Double Throw (SPDT), 1 A at 28 Vdc, G ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance

Description +

MICRO SWITCH™ Subminiature Environmentally Sealed Basic Switches: XE Series, Single Pole Double Throw (SPDT), 1 A at 28 Vdc, Gold-Plated Contacts, Stainless Steel Enclosure, Solder-Plated Terminals, -54 °C to 149 °C [-65 °F to 300 °F] Temperature Range

Search Keywords: 14XE17T

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	Honeywell
Part No:	14XE17-T
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	85365019
COO:	US
ECCN:	EAR99
Supplier's Standard Package:	1
Mounting:	Through Hole
Pole Throw Configuration:	SPDT
Switch Configuration:	N.O./N.C.
Actuator Material/Style:	Steel/Plunger
Contact Rating @ Voltage:	1@28VDC A
Maximum Movement Differential:	0.13 mm
Operating Force:	2.5 N
Termination Style:	Solder
Dimension:	15.65 x 8.03 x 22.35 mm
Body Orientation:	Straight
