04A-B01 by grayhill

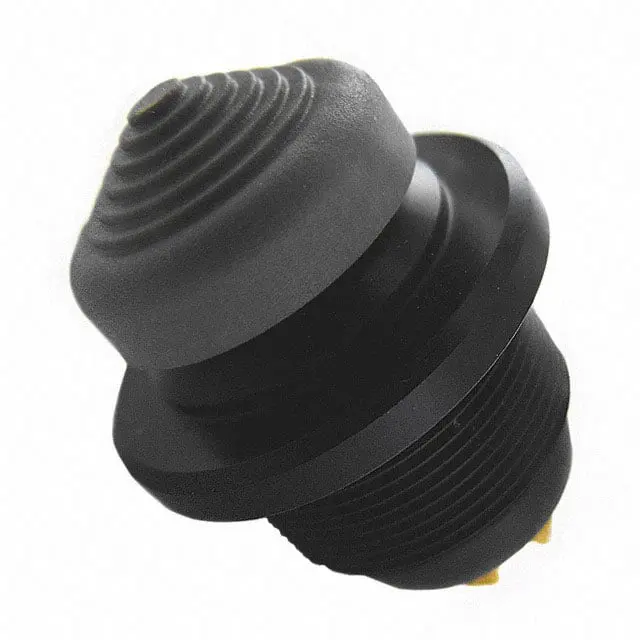

Image is representational - see manufacturer specifications

Grayhill Authorized Distributor

04A-B01

Switch Push Button 4PST Bat Handle 0.25A 220VAC PC Pins Thru-Hole

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Switch Push Button 4PST Bat Handle 0.25A 220VAC PC Pins Thru-Hole
Search Keywords: 04AB01
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Grayhill
  • Part No:
    04A-B01
  • Alias/AKA:
    ASM,4WAY,BAT-HANDLE,ROHS
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509030
  • COO:
    US
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Mounting:
    Through Hole
  • Pole Throw Configuration:
    4PST
  • Bushing Type:
    N/R
  • Switch Configuration:
    N.O./N.C.
  • Contact Rating @ Voltage:
    0.25A@115 VAC
  • Actuator Style:
    Bat Handle
  • Illumination:
    N/R
  • Terminal Type:
    PC Pins
  • Body Orientation:
    Straight
  • Dimension:
    21.59 x 21.59 x 30.96 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 04A-B01 RoHS compliant?
Yes, 04A-B01 is RoHS compliant.
What is the lead time for 04A-B01?
The standard lead time for 04A-B01 is approximately 16 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 60
Ships today, if you order in
16 Weeks can ship 2/11/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1
$36.71
5
$30.62
10
$28.50
25
$26.10
50
$24.44
100
$23.13
250 +
$21.12
Click for Quote
