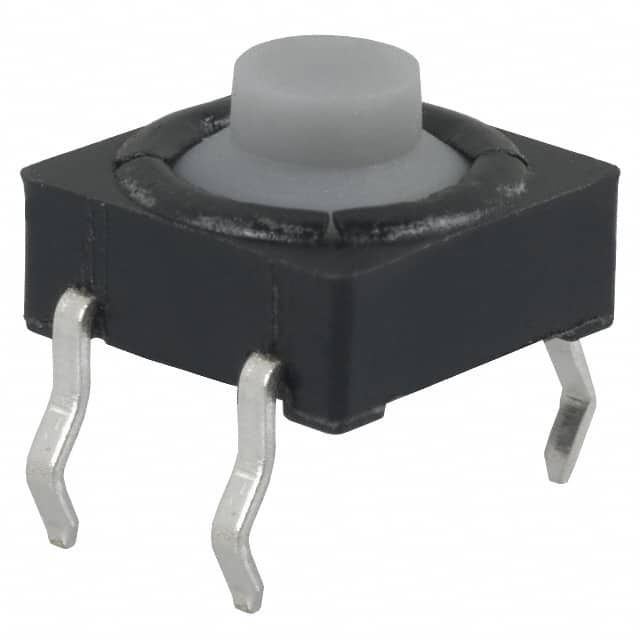

Image is representational - see manufacturer specifications

E-Switch Authorized Distributor

TL9000F120QG

Tactile Switch - SPST-NO - Top Actuated - 0.05A @ 12VDC - Standard Actuator - 5.00mm Actuator Height off PCB - Non-Illuminated ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Tactile Switch - SPST-NO - Top Actuated - 0.05A @ 12VDC - Standard Actuator - 5.00mm Actuator Height off PCB - Non-Illuminated - 120gf Operating Force - PC Pin - Through Hole.
Search Keywords: TL9000F120QG
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: E-Switch
Part No: TL9000F120QG
Unit of Measure: Per Each
RoHS: Yes
HTS: 8536509065
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 1000
Dimension: 7.8 x 9.9 x 5 mm
Mounting: PCB Through Hole
Pole Throw Configuration: SPST
Switch Configuration: N.O.
Actuator Style: Round Button
Operating Force: 1.18 N
Contact Rating @ Voltage: 0.05@12VDC A
Illumination Type: N/R
Body Orientation: Straight
Termination Style: PC Pins
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is TL9000F120QG RoHS compliant?
Yes, TL9000F120QG is RoHS compliant.
What is the lead time for TL9000F120QG?
The standard lead time for TL9000F120QG is approximately 8 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Minimum Order Quantity:
65
8 Weeks can ship 1/14/27
Backorder
Request Quote
Price (USD)
Qty
Unit Price
65
$1.1400
100
$1.0600
150
$0.7650
500
$0.2125
1,000
$0.1776
2,500
$0.1577
5,000 +
$0.1387
