TL6120AF160QG by e-switch

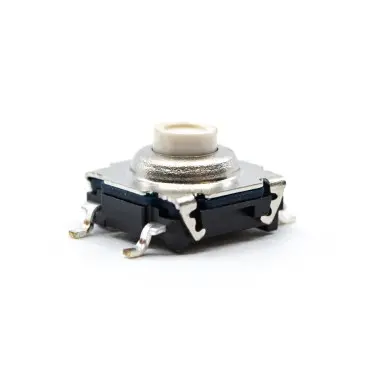

Image is representational - see manufacturer specifications

E-Switch Authorized Distributor

TL6120AF160QG

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 50VDC 1.57N SMD

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
REEL Packaging
Certificate of Compliance
Description +
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 50VDC 1.57N SMD
Search Keywords: TL6120AF160QG
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    E-Switch
  • Part No:
    TL6120AF160QG
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509033
  • COO:
    VN
  • ECCN:
    EAR99
  • Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    700
  • Dimension:
    7.2 x 10 x 4.7 mm
  • Mounting:
    PCB Surface Mount
  • Pole Throw Configuration:
    SPST
  • Switch Configuration:
    N.O.
  • Actuator Style:
    Round Button
  • Operating Force:
    1.57 N
  • Contact Rating @ Voltage:
    0.05@50VDC A
  • Illumination Type:
    N/R
  • Body Orientation:
    Straight
  • Termination Style:
    Gull Wing
  • Seal Location:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is TL6120AF160QG RoHS compliant?
Yes, TL6120AF160QG is RoHS compliant.
What is the lead time for TL6120AF160QG?
The standard lead time for TL6120AF160QG is approximately 12 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 4,200
Can Ship immediately
Minimum Order Quantity:
700
Order Increment:
700
12 Weeks can ship 12/28/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
700
$0.4578
1,400
$0.4483
2,800
$0.4388
5,600
$0.3801
7,700
$0.3763
10,500
$0.3607
15,400
$0.3563
25,200 +
$0.3505
