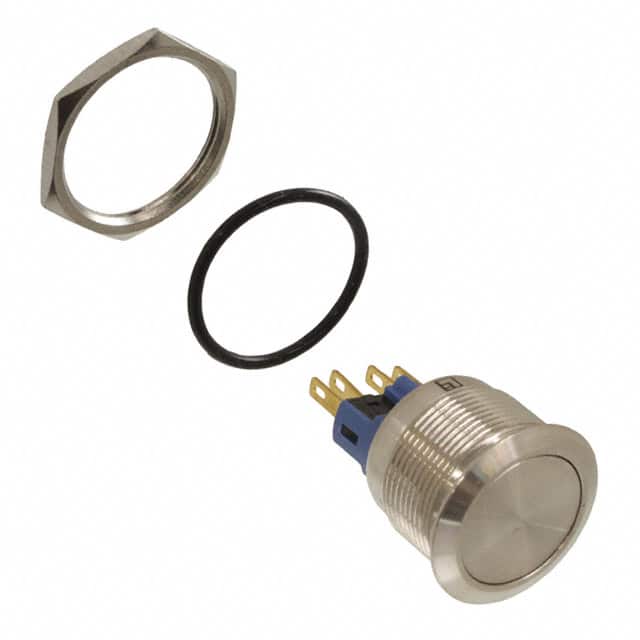

PV7F2Y0SS by e-switch
Image is representational - see manufacturer specifications

E-Switch Authorized Distributor

PV7F2Y0SS

Pushbutton Switch - DPST-NO/NC - Anti-Vandal - 2A - 48VDC - 1 Pole Off-(On)/1 Pole On-(Off) - Stainless Steel Flush Round Butt ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Pushbutton Switch - DPST-NO/NC - Anti-Vandal - 2A - 48VDC - 1 Pole Off-(On)/1 Pole On-(Off) - Stainless Steel Flush Round Button Actuator - Non-Illuminated - 0.110" (2.8mm) Solder Quick Connect - Front Panel Mount.
Search Keywords: PV7F2Y0SS
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    E-Switch
  • Part No:
    PV7F2Y0SS
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509065
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    20
  • Mounting:
    Panel Mount
  • Pole Throw Configuration:
    SPST/SPST
  • Bushing Type:
    Threaded
  • Switch Configuration:
    OFF (ON)/ON (OFF)
  • Contact Rating @ Voltage:
    2A@48 VDC
  • Actuator Style:
    Flush Round Button
  • Illumination:
    N/R
  • Terminal Type:
    Solder
  • Body Orientation:
    Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is PV7F2Y0SS RoHS compliant?
Yes, PV7F2Y0SS is RoHS compliant.
What is the lead time for PV7F2Y0SS?
The standard lead time for PV7F2Y0SS is approximately 11 weeks. In-stock quantities ship from OnlineComponents.com.
