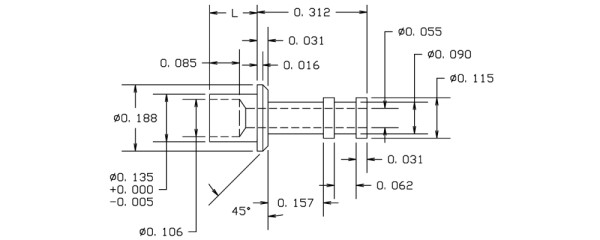

Image is representational - see mfr. specs
10-325-3-01
Concord
NON-INSULATED THRU-HOLE DOUBLE TURRET TERMINAL
Accessories Notify Me
RoHS Compliant
Description
+
NON-INSULATED THRU-HOLE DOUBLE TURRET TERMINAL
Search Keywords: 10325301
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Concord
-
Part No:10-325-3-01
-
Unit of Measure:Per Each
-
RoHS:Yes
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Board/Panel Mounting Method:SWAGE MOUNT
-
Shank Length (L):0.135"
-
Terminal Material:Brass
-
Installation Tool: Press-Fit/Roll Swage/Rivet Punch (Arbor Press:TP136-110
-
Terminal Finish:Silver
-
Board/Panel Thickness:3/32"
-
Angular:± 5 °
-
Installation Tool: Anvil (Arbor Press Operated):TA188-115-30
-
Installation Tool: Arbor Press:TM1
-
Decimal:± .005
-
Instruction Notes:SEE GENERAL SWAGING INSTALLATION INSTRUCTION ON CONCORD ELECTRONICS WEBSITE WWW.CONCORD-ELECTRONICS.COM.
-
Fractional:± 1/64
-
Overall Length:0.342"
-
Mounting Hole Size:0.1405" ± 0.001
-
Installation Tool: Flare Swage Punch (Arbor Press Operated):TFLP90-225
Tools/3D Models
+
-
EE ToolBox
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
35
Can Ship immediately
6 Weeks
can ship
7/6/26
Price (USD)
Qty
Unit Price
1
$1.58
10
$1.50
25 +
$1.42
Click for Quote
Log in
to unlock special pricing
