Available Replacements
Non-RoHS Equivalent

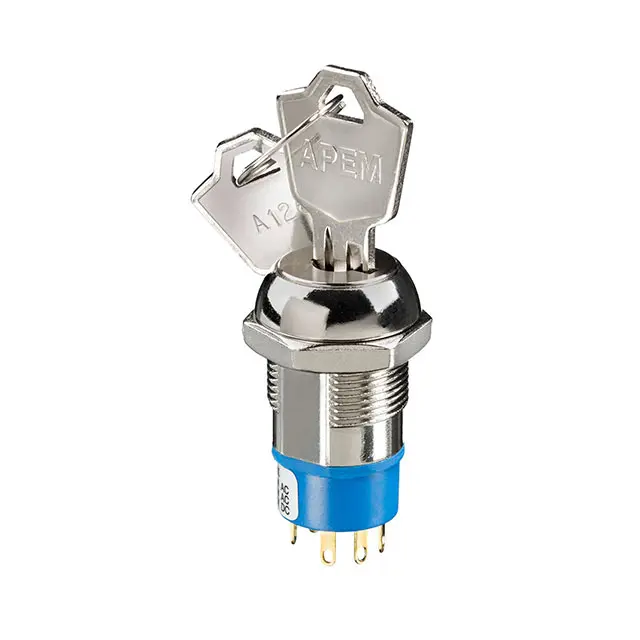

LK6JNB126N3
LK6JNB126N3

APEM Inc.

In Stock: 663

Minimum Order: 5

View Product
JD7509J by apem inc.
Image is representational - see manufacturer specifications

APEM Inc. Authorized Distributor

JD7509J

Switch Key Lock DP3T 45° Flat Key 4A 250VAC Solder Lug Panel Mount

+ see all

View Datasheet Ask the Datasheet Accessories

RoHS Compliant
Discontinued & Replaced
Packaging
Certificate of Compliance
Description +
Switch Key Lock DP3T 45° Flat Key 4A 250VAC Solder Lug Panel Mount
Search Keywords: JD7509J
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    APEM Inc.
  • Part No:
    JD7509J
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509065
  • COO:
    FR
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    25
  • Number of Positions:
    3
  • Angle of Throw:
    45 °
  • Key Removable Positions:
    1,2,3
  • Switch Configuration:
    N/A
  • Pole Throw Configuration:
    DP3T
  • Contact Rating @ Voltage:
    4@125VAC A
  • Terminal Type:
    Solder
  • Bezel Style:
    Round
  • Operating Temperature:
    -30 to 85 °C
  • Body Orientation:
    Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is JD7509J discontinued?
Yes, JD7509J from Apem Inc. is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is JD7509J RoHS compliant?
Yes, JD7509J is RoHS compliant.
What is the lead time for JD7509J?
The standard lead time for JD7509J is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
