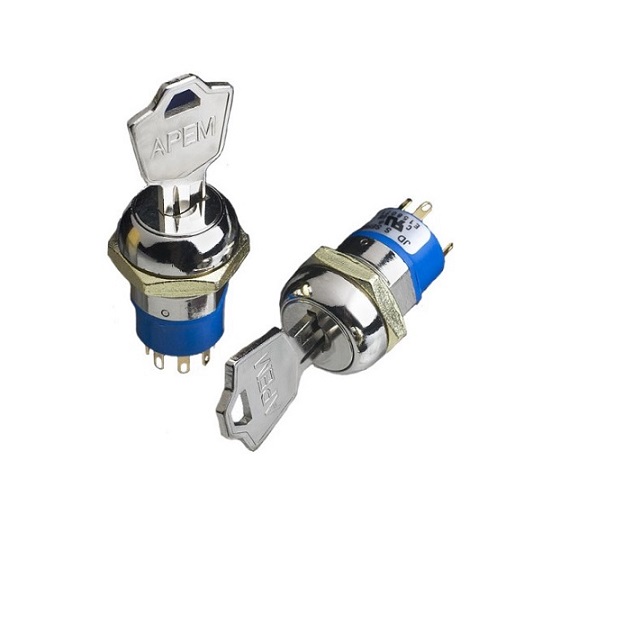

JD7509A by apem inc.
Image is representational - see manufacturer specifications

APEM Inc. Authorized Distributor

JD7509A

Switch Key Lock SP3T 45° Flat Key 4A 250VAC Solder Lug Panel Mount

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Switch Key Lock SP3T 45° Flat Key 4A 250VAC Solder Lug Panel Mount
Search Keywords: JD7509A
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    APEM Inc.
  • Part No:
    JD7509A
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509065
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Positions:
    3
  • Angle of Throw:
    45 °
  • Key Removable Positions:
    1
  • Switch Configuration:
    N/A
  • Pole Throw Configuration:
    SP3T
  • Contact Rating @ Voltage:
    4@125VAC A
  • Terminal Type:
    Solder
  • Bezel Style:
    Round
  • Operating Temperature:
    -30 to 85 °C
  • Body Orientation:
    Straight
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is JD7509A RoHS compliant?
Yes, JD7509A is RoHS compliant.
What is the lead time for JD7509A?
The standard lead time for JD7509A is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 10
Can Ship immediately
Minimum Order Quantity:
7
9 Weeks can ship 11/23/26
ADD TO CART
Price (USD)
Qty
Unit Price
7
$10.89
25
$10.35
50
$9.93
100
$8.10
250
$7.88
500
$6.85
1,000 +
$6.66
