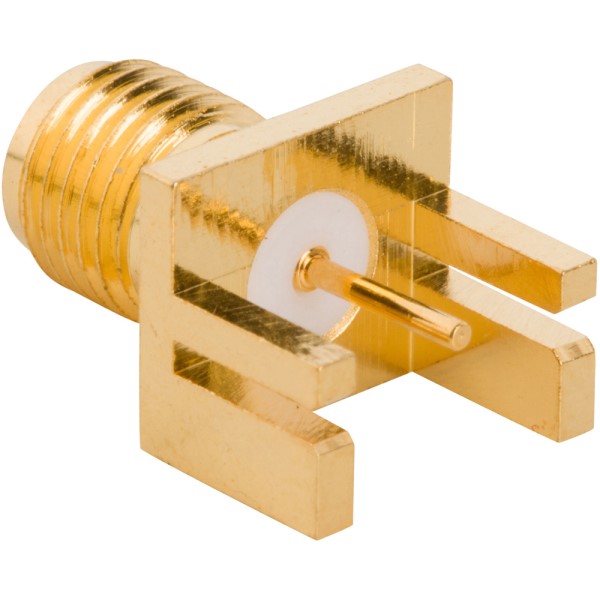

Image is representational - see manufacturer specifications
Amphenol RF
901-10019
RF Connector SMA End Launch PCB Jack 50 Ohm
View Datasheet Accessories Notify Me
RoHS Compliant
BAG Packaging
Description
+
RF Connector SMA End Launch PCB Jack 50 Ohm
Search Keywords: 90110019
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Amphenol RF
-
Part No:901-10019
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8536694010
-
COO:CN
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Type:SMA
-
Impedance:50 Ohm
-
Operating Frequency:0 to 18 Hz to GHz
-
Gender:Jack
-
Mounting:Edge Mount
-
Body Orientation:Straight
-
Terminate To:PCB
-
Termination Method:Solder
-
Operating Temperature:-65 to 165 °C
-
Dimension:9.5 x 13.64 x 7.92 mm
Tools/3D Models
+
-
EE ToolBox
Product Guides
+
Customer Drawings
901-10019 3D Model File
Datasheet
Frequently Asked Questions
Is 901-10019 RoHS compliant?
Yes, 901-10019 is RoHS compliant.
What is the lead time for 901-10019?
The standard lead time for 901-10019 is approximately 13 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
26
Ships today, if you order in
Manufacturer Stock:
224
can ship
MOQ for out of Stock Qty:
25
13 Weeks
can ship
11/27/26
Price (USD)
Qty
Unit Price
1
$33.43
5
$33.34
10
$33.26
25
$33.18
50
$20.42
75
$16.17
100 +
$15.84
Click for Quote
Log in
to unlock special pricing
