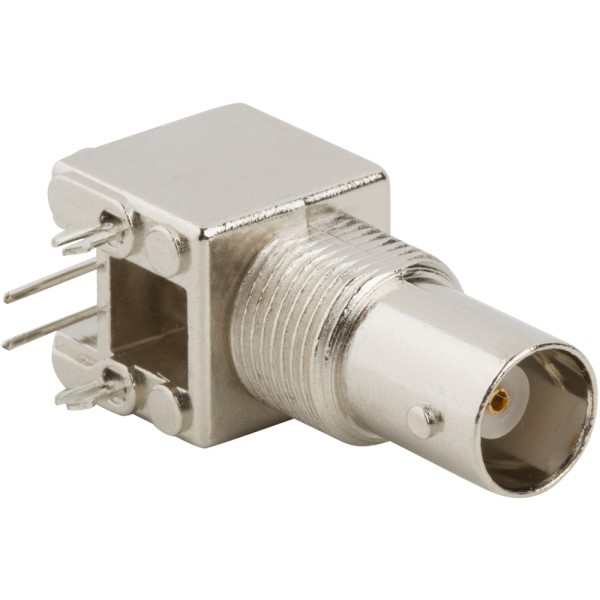

031-5640-1010 by amphenol rf
Image is representational - see manufacturer specifications

Amphenol RF Authorized Distributor

031-5640-1010

RF Connector BNC Right Angle PCB Jack Through Hole 50 Ohm

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
BAG Packaging
Certificate of Compliance
Description +
RF Connector BNC Right Angle PCB Jack Through Hole 50 Ohm
Search Keywords: 03156401010
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Amphenol RF
  • Part No:
    031-5640-1010
  • Alias/AKA:
    31-5640-1010
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694010
  • COO:
    TW
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Type:
    BNC
  • Impedance:
    50 Ohm
  • Operating Frequency:
    0 to 4 Hz to GHz
  • Gender:
    Jack
  • Mounting:
    Through Hole
  • Body Orientation:
    Right Angle
  • Terminate To:
    PCB
  • Termination Method:
    Solder
  • Operating Temperature:
    -65 to 165 °C
  • Dimension:
    14.73 x 15.74 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 031-5640-1010 RoHS compliant?
Yes, 031-5640-1010 is RoHS compliant.
What is the lead time for 031-5640-1010?
The standard lead time for 031-5640-1010 is approximately 13 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 190
Can Ship immediately
Manufacturer Stock:
1 can ship
Minimum Order Quantity:
5
13 Weeks can ship 11/23/26
ADD TO CART
Price (USD)
Qty
Unit Price
5
$5.28
50
$4.39
100
$4.13
250
$3.79
500
$3.65
1,000
$3.48
2,500 +
$3.26
Click for Quote
