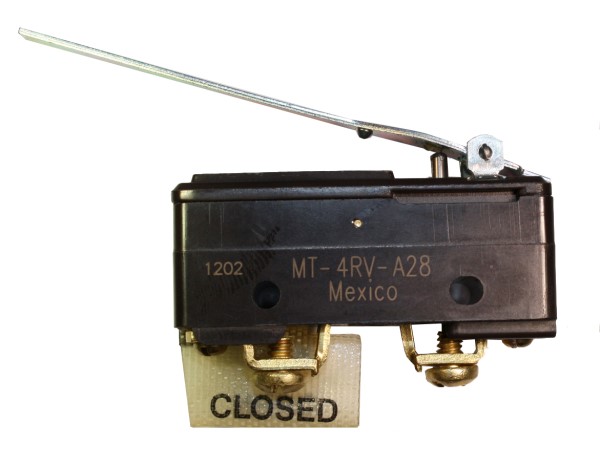

MT-4RV-A28

Honeywell

MICRO SWITCH™ Basic Switches: MT Series, Single Pole Double Throw (SPDT), 10 A at 125 Vdc/Vac (non-polarized), Straight Lever ...

+ see all

产品说明书附件 Notify Me

符合 RoHS 规定

包装

Certificate of Compliance Guarantee

描述 +

MICRO SWITCH™ Basic Switches: MT Series, Single Pole Double Throw (SPDT), 10 A at 125 Vdc/Vac (non-polarized), Straight Lever Actuator, 0,56 N [2.0 oz] Maximum Operating Force, Silver Contacts, Screw Termination

Product Highlights:

This Snap Action Microswitch has an arc-resistant case
Mounting interchangeability with BZ/BA switches
Rated for 10 A resistive at 125 Vac/Vdc and 3 A resistive at 250 Vdc
Mechanical life of 100,000 cycles at 95% survival
This Honeywell Switch has arc-extinguishing design in contact area

Potential Applications:

DC motors
Solenoids

Search Keywords: MT4RVA28

规格 +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
供应商:

Honeywell
部件编号:

MT-4RV-A28
计量单位:

Per Each
RoHS:

Yes
HTS:

85365080
COO:

MX
ECCN:

EAR99
供应商标准包装:

50
Mounting:

Through Hole
Pole Throw Configuration:

SPDT
Switch Configuration:

N.O./N.C.
Actuator Material/Style:

Stainless Steel/Roller Lever
Contact Rating @ Voltage:

186.42 A
Maximum Movement Differential:

0.89 mm
Operating Force:

1.25 N
Termination Style:

Screw
Dimension:

49.28 x 17.45 x 53.44 mm
Body Orientation:

Straight
IP Rating:

N/A
